Portable UAV Drone Detection and Jammer

Short Description:

The Portable UAV Drone Detection and Jammer is equipped with a 2.8-inch bright IPS LCD screen, which has the function of detecting the orientation and model of the drone, and has the function of interfering with the frequency band used by the drone, which can drive the drone away or force the drone to land, and completely cut off the contact between the drone and the remote control or the ground station to ensure the safety of the low-altitude airspace in the region. Compared with common portable control equipment, this device adds device positioning and networking functions, and can link the back-end command system to facilitate the background command personnel to make transfers according to the distribution of equipment.


Product Detail

Why Choose Us

Product Tags

Product Video

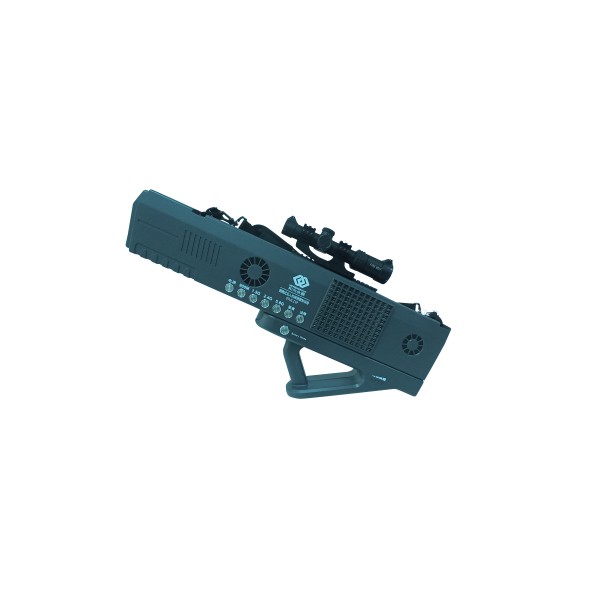

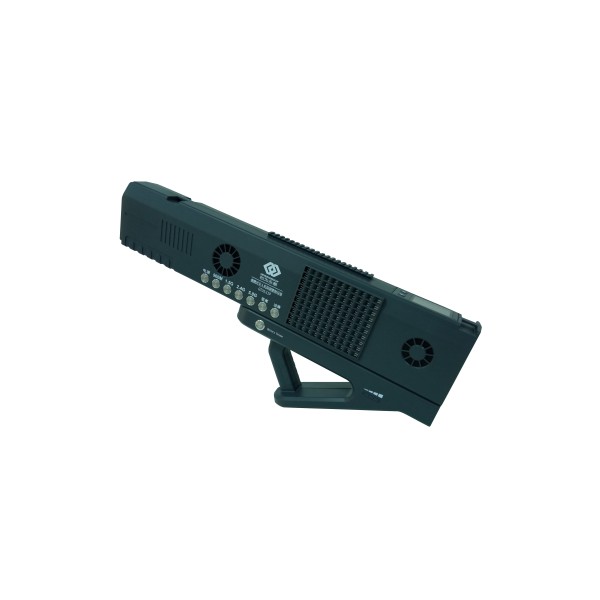

Product picture

JAMMER...
JAMMER. (2)

Description

Portable UAV Drone Detection and Jammer is equipped with a 2.8-inch bright IPS LCD screen, which has the function of detecting the orientation and model of the drone, and has the function of interfering with the frequency band used by the drone, which can drive the drone away or force the drone to land, and completely cut off the contact between the drone and the remote control or the ground station to ensure the safety of the low-altitude airspace in the region. Compared with common portable control equipment, this device adds device positioning and networking functions, and can link the back-end command system to facilitate the background command personnel to make transfers according to the distribution of equipment.

Technical Specification

Module type High-precision L1, 15 dual-frequency GNSS receiving module
Position system Beidou, GPS
PPS search accuracy ±15ns
Maximum speed 515m/s
Speed accuracy 0.1m/s
Dynamic heading Angle accuracy 0.3

Detection technical parameters

Detection frequency Dual frequency 2400~2485MHz, 5150~5950MHz
Detection antenna gain 2dBi
Detection power consumption ≤5W
Detection mode Omnidirectional detection, directional detection
Detection distance 1-2km
Number of detections Multiple targets
Detection and identification Commonly used UAV types
Warning mode Sound, vibration

Jamming technical parameters

Operating frequency 900 ~ 930MHz, 1550 ~ 1620MHz, 2400 ~ 2500MHz, 5715 ~ 5850MHz
Output power 150W
Signal style DSSS(spread spectrum) /FHSS (frequency hopping)
Battery capacity 2 pieces of 7000mah lithium batteries
Endurance ≥30 minutes (continuous launch); ≥120 minutes (30s launch and 90s stop)
Product weight About 4.5kg
Product size Host: 690*300*80mm
Working mode Expel/Forced land mode; Each module can be individually controlled on and off
