Portable HD Ultra-thin X-ray Scanner System (Dual-Energy)
Introduction
The Portable HD Ultra-thin X-ray Scanner System is a device using X-ray fluoroscopic imaging. Through high-definition images, operators can quickly detect dangerous goods such as weapons, drugs, explosives and other contraband hidden in suspicious parcels and vehicles. This equipment is suitable for security inspection and bomb disposal, anti-smuggling and drug control, security, customs, post and telecommunications, forensic autopsy, and non-destructive testing in industrial departments.
Product Features
- High-definition: High-definition images facilitate operators to identify the types of items in the package and analyze details.
- Ultra-thin: The ultra-thin flat panel detector can be placed in narrow gaps for easy inspection.
- Lightweight: The equipment is easy to assemble, the flat panel detector is light in weight, and easy to set up.
- Simple: Easy to operate, wireless connection, remote control pulse emission, touch screen computer is convenient for image processing.

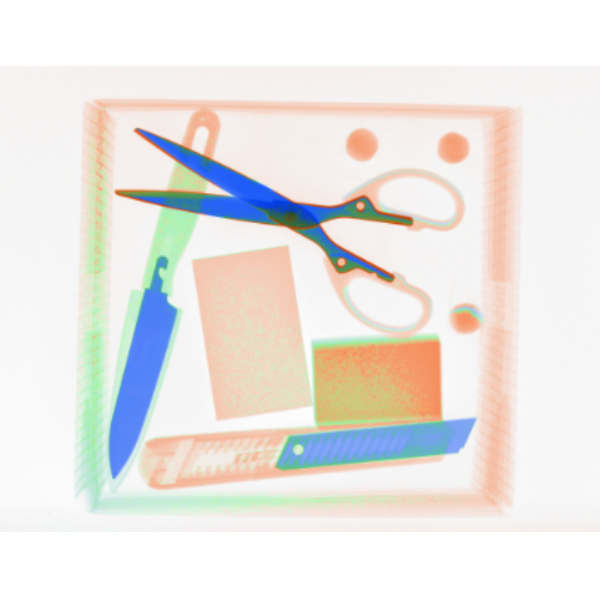

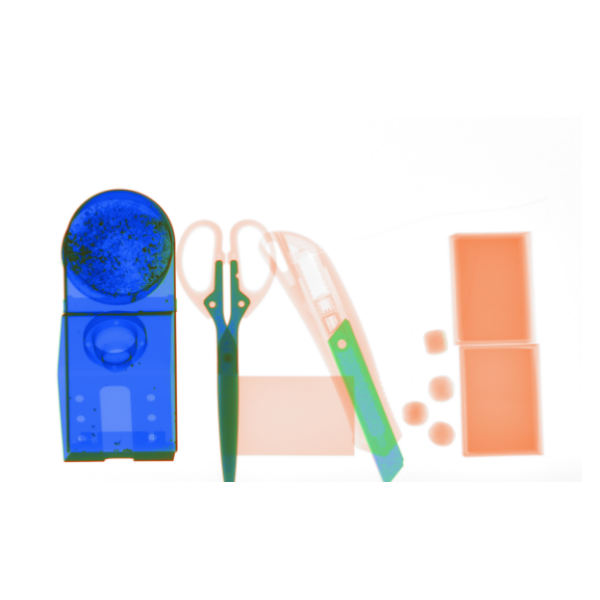

Dual-Energy Imaging Image Effects

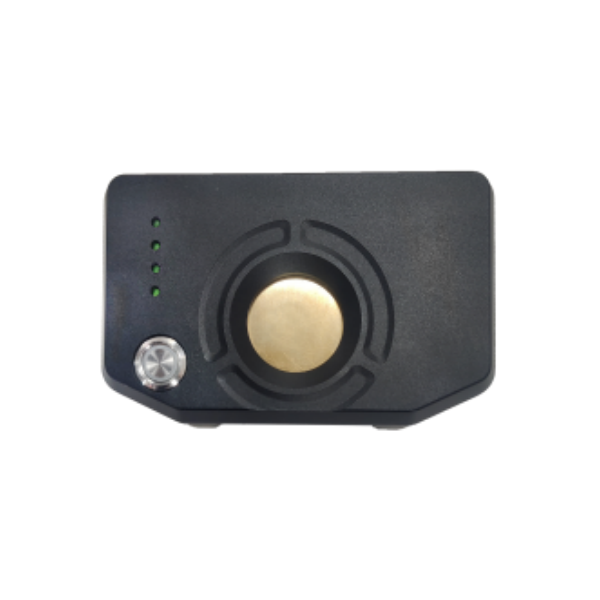

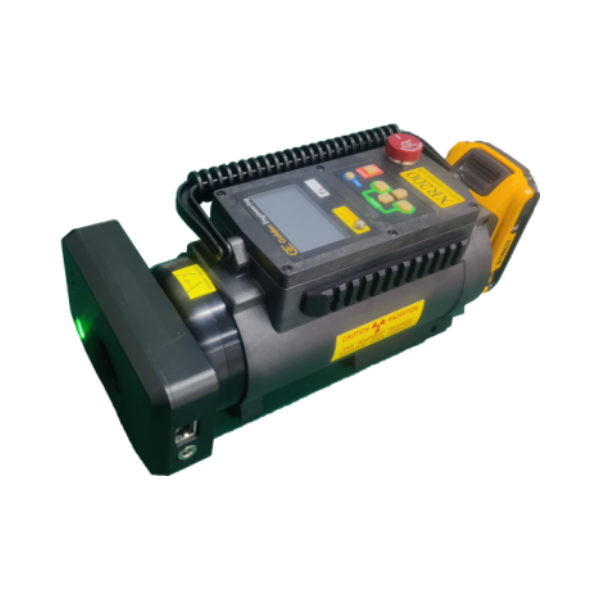

Dual-Energy Module and Radiation Source with Dual-Energy Module Installed
Technical Parameter
1.Flat Panel Detector
|
Sensor type |
a-Si |
|
Scintillator |
Gos / CsI:TI |
|
Effective area |
350 x 430 mm |
|
Effective area |
2560 x 3072 |
|
Pixel size |
139 μm |
|
Power consumption |
<20W |
|
Spatial resolution |
3.5 LP/mm |
|
Energy range |
40-160 KV |
|
Dynamic range |
≥84 dB |
|
Sensitivity |
≥0.54 LSB/nGy |
|
Afterimage |
<1% 1st frame |
|
Size |
385*456*15mm |
|
Weight |
≤4kg (including battery) |
|
Structural material |
aluminum-magnesium alloy |
|
Front material of detector |
carbon fiber board |
|
Narrow edge distance |
bottom ≤5mm; left side ≤10mm |
2.Pulsed Radiation Source
|
Penetration |
12mm steel plate (60mm aluminum plate) |
|
Size |
309mm×108mm×148mm |
|
Weight |
5.0kg (including battery) |
|
Pulse rate |
10 pulses per second |
|
Maximum load |
200 pulses every 4 minutes (3000 pulses/hour) |
|
Power supply |
20V lithium-ion battery, which can emit 6000 pulses when fully charged |
|
Delay time |
When the emission switch is triggered, there is a delay time of 15 to 240 seconds. |
3.Dual-Energy Imaging (Optional)
Dual-energy output , quickly distinguish between inorganic and organic substances, and observe and analyze various dangerous goods. Dual-energy imaging takes images twice with different energies, and the system will calculate, analyze and fuse the images under the two energies to finally obtain the image after dual-energy material classification.
|
Size |
145*90*36mm |
|
Weight |
0.4kg |
|
Battery parameters |
12V1Ah |
|
Working time |
7 hours |
